Detector Results

The charge detector array has been in use at Aberystwyth since April 2004 and has been used at the Synchrotron Radiation Source at the Daresbury Laboratories on a number of occasions since then.

The results presented here are a small sample of some of the key performance indicators for the detector. Also included are some application results showing how the use of an array detector such as the Aberystwyth MCD can radically improve the science being carried out.

Maximum Count Rate

The detector can count incoming electrons at a maximum rate in excess of 40K counts per second per pixel. As this is a truly parallel device, the overall count rate across the 768 channel array is in excess of 30M counts per second. This count rate is limited by the microchannel plates used (Hamamatsu 12um pore plates).

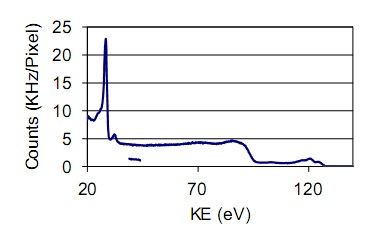

The graph above shows a spectrum taken on the secondary electron tail of a silicon sample on beamline 4.1 at the SRS Daresbury Laboratory. A single pixel from the detector is presented, showing the ultimate count rate in excess of 40KCounts per sec per pixel.

Readout Rate

Once the counts are accumulated on the detector chip, the control electronics will then read back the counter data before initiating another reading cycle. At present the readout rate from the detector to the control electronics is set at 2uS/pixel, leading to a readout time of 1.5ms for the 768 channel device.

Uniformity

With any array detector there will be a variation in sensitivity from channel to channel.

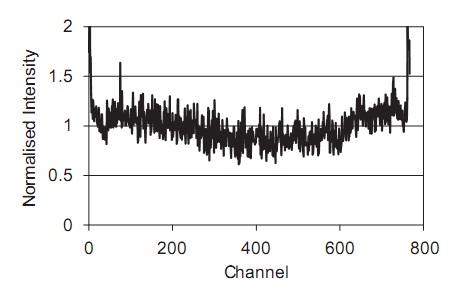

The graph below shows the response of a 384 channel detector to uniform illumination.

The rms variation in response is 8% across the array. This is due to variations in the detector itself and also variation in MCP performance.

Applications

The detector has been used to study a variety of systems including:

- Organic thin film growth
- Metal contact growth and formation
